Monday, December 27, 2010

How to teach Imp to dance

A new video showing how to import Characolle dancing animation to SBZ figure, then export it to BioVision (bvh) file and then apply to Doom 3 Imp model (md5).


To be precise, the merged animation cannot be saved yet, expect more to come...

Wednesday, December 22, 2010

Importing Sexy Beach Zero figures

Current windows build of Khayyam can be downloaded from Floyd Sourceforge page.


Here is quick tutorial how to import SBZ figures. The similar procedure can be used for other multi-part meshes (SB3, School Mate etc) - but not all collection formats have working autodetection for textures, bones and so on.
From main menu select: Objects -> Import -> Import Xpp Mesh



Click "Choose directory..." and select the "data" subdirectory in installed game location.
At the right-left is the list of all collection files (.pp) in chosen location. For SBZ, the bodies are in file sb03_00.pp. The game format should be autodetected from file name, but if it fails, select "Sexy Beach Zero" manually from game dropdown list. After selecting correct collection file the contents of it should appear in lower-left list.
Female bodies are named cw_body_??_??.xx.
Keep "Hide extras" and "External textures" checked for now - these make oiling/massage guide mesh invisible and replace plain skin materials from predefined textures.
Select proper body model and the preview should appear at right. The common camera controls (middle and right drag) work similar way to the main window.
Click "Import". The import options dialog should appear.



If you are importing the first object, the only available option is "Import as standalone mesh". Keep "Create skeleton" checked if you want to pose the figure later. Click "Import".
Imported body appears in main window. But as there is no proper lighting, it looks plain.
Select "Object->Add->Directional Light" to make it better.



Select body by moving mouse over it (yellow highlight box should appear) and clicking. Selection is marked by orange wireframe around the body.
Now you are ready to import head. Again chose "Object->Import->Import Xpp mesh..."
From the collection list select the same collection, chose any of the head files (cw_head_??_??.xx) and click import.



The proper import options should be preselected. You have to import it as "Skin of selected mesh" so it will be controlled by the same skeleton. "Parent bone" and "Anchor bone" determine, which bones will be merged between existing body and new head skeletons. Click "Import" and voila - body has now head.
Repeat the same procedure with hair (the name of mesh is cw_hair_??_??.xx).



The next step is applying a texture to swimwear. For this we use builtin DOM editor - the most powerful tool of Khayyam.
Choose "Dialogs->Document Tree".
Expand "Scene" and then "Figure" nodes from left-hand tree view. Figure is a poseable object, that can have multiple skins (body, head, clothes) controlled by the single skeleton and additional poseable objects (like items at hand). The imported SBZ meshes are "GeometryXX" nodes. Select the first one of them (the body mesh).



At the right side there are tabs for the selected node and its parent classes. At moment we are interested in the Xpp geometry node itself (GeometryXX). You can see the list of all used internal materials, with visiblity checkboxes and optional external material ids. Importer autodetection should have made oiling guides invisible already. The body materials should have external textures attached (materialDNS_6 and materialDNS_5).
Select bra material mn_mizugi_00_00. From dropdown box below select "Create new" and click "Apply". This creates new texture override node for bra and opens material editor to define texture for it.
Texture editor looks like similar to Xpp mesh importer. First click "Choose directory" at top left and navigate to "data" directory under the installed game.  From "Show files" dropdown list chose "Collections". Select the collection with swimwear textures (sb06_00.pp). From Type dropdown list select "Sexy Beach Zero" (it is not autodetected at moment).



At lower left list are all available textures from that collection. Select the one you like and click "Apply".
The selected material is now updated with chosen texture. As a next step, apply the same texture to panties and inner sides of swimwear.
Select "mn_mizugi_01_00" from material list. From dropdown list below select the new material created for bra (materialDNS_2) and click "Apply". repeat the same procedure from the inside of swimwear (mn_mizugi_00_01 and mn_mizugi_01_01).



And thats all. You have just imported Sexy Beach Zero girl with swimwear.

For posing there is skeleton mode (the small button with figure and blue bones in toolbar).
Before proceeding further it is good idea to familiarize yourself with document tree editor a bit - for example hiding bones without skin and extra bones you may not want to edit.
Importing scene is similar to importing figure - just make sure, that you import it as standalone object.

And last thing - save often. Khayyam is still alpha, so it has a bad habit to crash frequently.

Monday, December 13, 2010

Sexy Beach Zero

SBZ is the latest hentai game from Illusion (look at ontopic Hongfire forum if you want to know more and do not mind erotic content). Like other Sexy Beach games, it's gameplay is quite unfun - woo girls, talk, date, and massage them, change swimwear and have sex - but it has upgraded rendering engine (although not very good) and, most importantly, semi-realistic (but still pretty) models. So I have spent the last days in trying to get Khayyam to read, render and pose those as well as possible.

To make character customization possible, models are composed of three separate parts - body, head and hair. Also - because the game allows you to "tan" girls - neither body nor head texture is embedded in mesh, but instead has to be loaded separately. Same with swimwear textures. Body also has extra "envelope" layer, that is used to guide hand and oil during oiling/massage scenes.

The skeleton has become even more complex, compared to previous models. One reason for this seems to be, that ingame body customization is now done with adjusting hidden bones.

Full skeleton of a SBZ model
The item and clothing collection is very uninteresting, like one can expect from Sexy Beach series. Maps are of better quality than in previous games, but there are only few of them.
Ai in jungle (rendered with POV-Ray)
And a render for you. It has too much focal blur, but I am too lazy at moment to make better one ;) The girl is Ai, who first appeared in Real Girlfriend, background is daytime jungle map from SBZ. Lighting consists of one area light (daylight) plus 2 greenish spotlights to illuminate shadows.

Thursday, November 18, 2010

How to merge animations?

There are two basic problems with copying animations from one figure to another:
  1. The skeletons do not match. First, the body proportions are off, especially if converting between male/female or realistic/stylized characters. And secondly, the non-obvious bones are often arranged completely differently. By obvious bones I mean the ones like armbones, shins and so on, that connect two visible joints. Non-obvious bones are hidden and their joints are not immediately visible - like backbone or shoulders. Thus the exact number and placement of such bones may vary, depending on how realistic and fluid motion is needed and how it is achieved.
  2. The bone orientations do not match. Even for bones that are perfectly aligned, like arms, the local coordinate systems can be very different and thus the transformations from one skeleton cannot be immediately carried over to another.
 How to deal with it?

In Khayyam I am currently doing the following procedure:
  1. Create one-to-one links between the well-defined bones of each skeleton - i.e. legs, shins, arms, forearms and heads. These function as anchors for matching body movements via IK solver.
  2. Pick rootmost joints of matched bones, i.e. hips and shoulders as anchor point pairs.
  3. Find the bone chain leading to last common ancestor of such pairs (starting from the point where previous chain ended). I.e. we get chains like these:
    3.1. Center_of_Mass -> Skeleton_Root -> Pelvis
    3.2. Lower_Backbone -> Upper_Backbone -> Chest
  4. Adjust chains, starting from rootmost, as closely as possible to anchor points using IK solver.
  5. Point all well-defined bones to the same direction as the originals, using IK solver

As you can see, it basically works, although some constraints on joint movement would be nice.

A demo video showing how dancing moves for DAZ skeleton can be imported to Esk Anderson figure

Sunday, November 7, 2010

About C++

I have had love/hate relationship with C++ from the time I started using it extensively about nine years ago. Before that everything was C - for example Sodipodi was 99.9% written in C (the only exception was the interface to KDE file dialogs). Those were good old times...

The learning of C++ was mostly one big frustration. Few beautiful and useful features - buried in clumsy, unintuitive and ugly mess. So after trying out and throwing away one feature after another, I mostly joined the C with classes crowd. This is the style used in Khayyam/Miletos/Elea code. But even for this minor subset of features, the language is just implemented plain wrong. Some completely elementary, clean and logical things are missing - and on the other hand - extremely clumsy, opaque and hard to use features are present.

So following is my list of things I'll one day implement in my own C Successor(TM) language.
  1. Keep classes and struct separate. Structs should be POD, classes should ALWYAS have pointer to RTI. So no virtual methods for struct - and who in his right mind will miss these?
  2. Keep memory layout standardized. Seriously. Probably all C++ variants implement things in one way - but the specification refuses to fix things once and for all.
    • Classes are struct(ure)s. Like in Java. Standardized containers having function pointers for virtual methods, RTI information, link to parent class and so on.
    • All object instances have hidden data field in first position, that is - you guess it - pointer to class struct(ure).
    • All nonstatic methods should have pointer to class instance as hidden first parameter. So you can call class method from C. It is implemented this way anyways - but why force people to jump through loops to use it.
  3. Keep meta-language separate from core. Implement two-pass compiling or something (in addition to preprocessor).
    • Operator overloading should be specified in some meta-language. This would allow really useful things, like implementing separate dot and cross operators for vectors and so on. It should be transparently translated into proper C code during metalanguage parsing pass and then compiled by normal C/C++ compiler.
    • Templates should be specified in proper metalanguage instead of "yet another hack on top of C syntax" and translated into normal C code during compilation.
And for extra sugar - allow overloading the virtual method call operation. So I can actually subclass object systems from other languages without writing countless ugly wrapper classes.

Obligatory screenshot - Ichiro having break in a forest (needs better lighting actually)

Tuesday, October 26, 2010

Chibibel

Chibibel is a character by DAZ3D.
Poser cr2 (character rigging) files are quite heterogenous. So until now Chibibel has been the main reference implementation for cr2 importer.

Things implemented so far:
  • Parsing actor tree with channels. Actors (or props) are just a fancy name for bones (or frames) - i.e. positioned and transformed controllers for skin data. Channels are elementary property controllers - like individual rotation angles, morphs and so on. The main problem is, that the whole cr2 file format is mostly just (text based) dump of internal Poser controller structure as opposed to properly designed file format, so it contains many duplicate entries and meaningless data.
  • Twist and joint bend zones (no welds yet). Poser is special because the bending of joints is controlled with different weights for each main rotation axis - and these are specified algorithmically by line segments, angles and spheres. I am somewhat sceptical whether this would allow more natural movements - the weight system with extra bones and constraints should IMHO be easier and more powerful. But maybe it would be too difficult to set up for 3D modeling novices...
  • Welding obj meshes. Obj files cut meshes to groups, that cannot have interconnections. So cr2 file specifies, which groups should have their identically positioned vertices merged.
  • Loading textures from image files. Poser has quite complex material system, but currently Khayyam only looks it for diffuse texture entry and loads it as plain texture. Hopefully more is coming.
  • Conforming objects can be dropped to the same figure object as body. They behave surprisingly well, moving and bending with skeleton. But morphs cannot currently be linked, so if clothing has conforming morphs, they have to be adjusted manually.
  • Morphs work, but their values are not saved in XML data.
  • Props can be loaded but cannot be directly associated with bones. Props is (another) Poser fancy name for immutable objects (like tools, buildings etc).

Kuroyume Unoffcial CR2 File Specification has been invaluable resource for digging through the cryptic character data of Poser files.

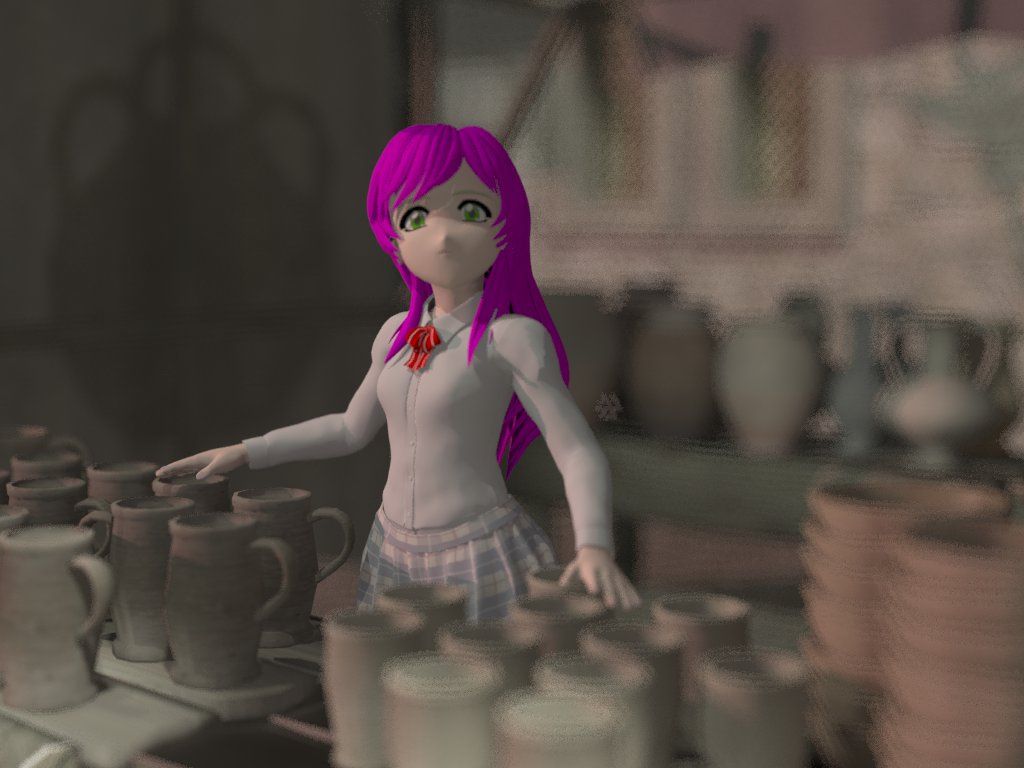

Obligatory screenshot - Chibibel selling pottery in market (rendered with POV-Ray)

Saturday, October 16, 2010

First steps with Poser(TM) figures

Khayyam can now load (no import dialog yet) some basic Poser figures. They are not even close to renderable status yet, but things are becoming more interesting now:
- Basic morphing works
- Skeleton transforms poses as twist/joint/joint angles to body
- Blending angles are implemented
- Spherical falloff zones work (somewhat)
- Color values are parsed from materials

The next things I am working on currently:
- Loading conforming meshes (like hair and clothes)
- Implementing bulges
- Welding vertices

Obligatory screenshot - chibibel from DAZ3D

Friday, October 8, 2010

Khayyam architecture

Khayyam is a collection of handful libraries plus shell application written in Gtk+ toolkit. Most components come from Sourceforge Floyd project, but core components are borrowed from Sodipodi. The most basic building blocks are

1. libarikkei (Sodipodi)
This is a collection of utility libraries for file handling, unicode parsing, text file tokenizing and similar things. It has both C and C++ versions of some most basic functions and is implemented as small, self-contained library that can be directly included into project.

2. elea (Floyd)
This is (yet another) 3D geometry library written in C++. It is meant to be small, so only the subset of functions used in Khayyam (and some other) are implemented. Again, it is self-contained and can be directly included into project.

3. libnr (Sodipodi)
This is small, self-contained, anti-aliased 2D rendering library.

4. libnrtype (Sodipodi)
Compact text rendering library on top of libnr

5. sehle (Floyd)
3D engine for OpenGL 2, using libelea for algebra. It is meant to be mostly bare-bones layer, implementing only the most basic stuff, like vertex buffers, textures, display list and so on. It should be quite flexible regards to rendering pipeline.

6. thera (Floyd)
Small and compact DOM-like library for XML parsing. It implements basic parser and writer on top of libxml, node tree, basic mutation callbacks and transaction system for rollback (undo and redo).

7. miletos (Floyd)
Fat scene graph library on top of thera, sehle and elea. Implements all more complex things like various file format parsers, skeletal animations and so on. It borrows the basic design concept from Sodipodi (although is implemented in C++ instead of C) - it is written as typed object tree, parallel to the purely untyped tree of thera. Most editing can be done either directly for temporary editing, or by customizing thera nodes or attributes for permanend modifications.

8. khayyam (Floyd)
This is the application itself.

This is only the most basic overview. Next time I hope to write some more details.

Obligatory screenshot (Des Blood 4 models, Digital Girl background, rendered with POV-Ray)

Monday, October 4, 2010

What is Khayyam?

Khayyam is a frontend tool to my experimental set of 3D (and related) libraries.


A scene composed in Khayyam and rendered in POV-Ray
In current incarnation it cannot do much. Still you can import some model formats, place and pose these, and render resulting scene in POV-Ray. Plus it is free software. And works under both Windows and Linux.


A small overview of Khayyam can be found here.

At moment I am working on Poser model format support. This will be the first step for Khayyam to become a serious rendering tool.
